KB Elements 86" 4K UHD Smart Interactive Touch Display – ELT86P14DE
KB ELEMENTS 86" 4K UHD Smart Interactive Touch Display combines display size 86" 4K UHD (3840 × 2160) IPS D-LED Panel — 350 nits Brightness with touch technology High-precision Infrared multi‑touch (40+ points) , ≤8ms Ultra-fast response. The complete model-specific features and technical details are organized below for clear product comparison.
Key Features
- Display Size: 86" 4K UHD (3840 × 2160) IPS D-LED Panel — 350 nits Brightness
- Touch Technology: High-precision Infrared multi‑touch (40+ points) , ≤8ms Ultra-fast response

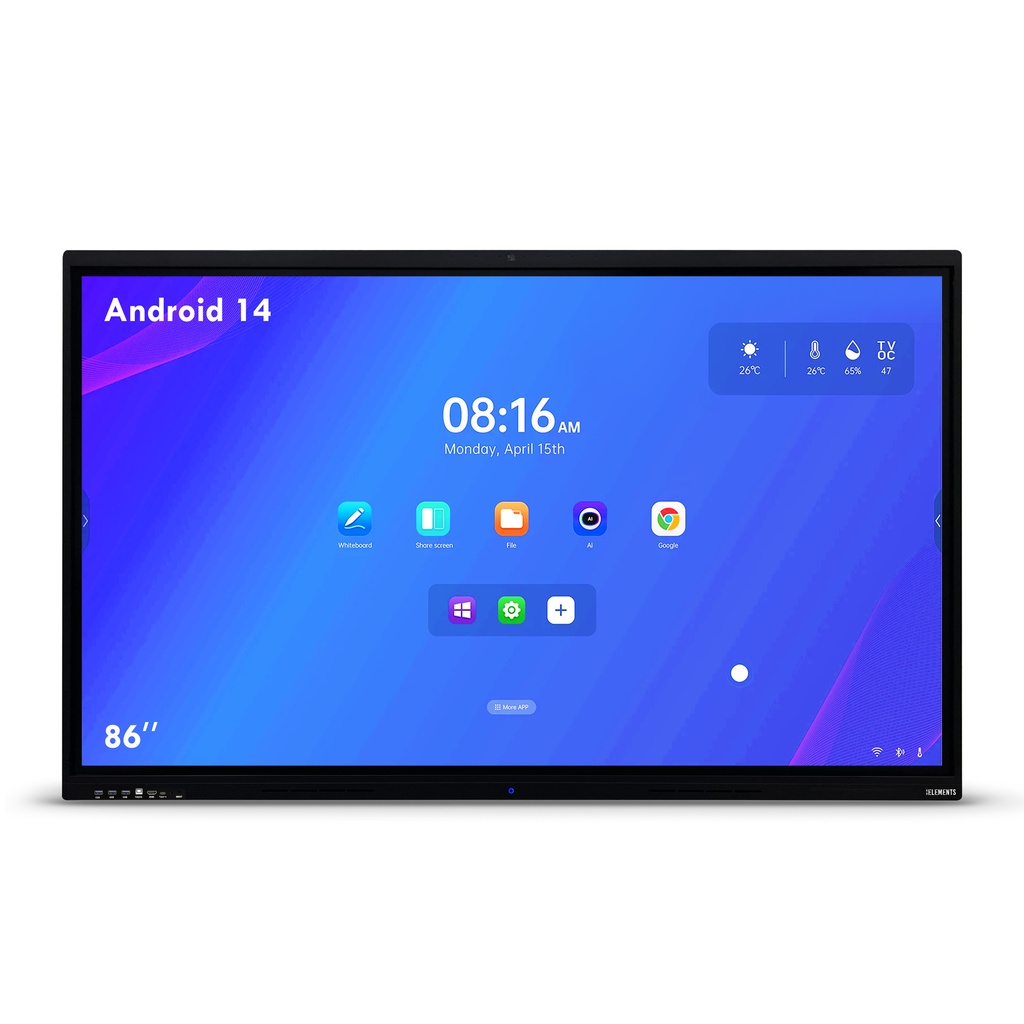

- Android 14 Operating System: V100, 8-core CPU, 8GB RAM, 128GB storage

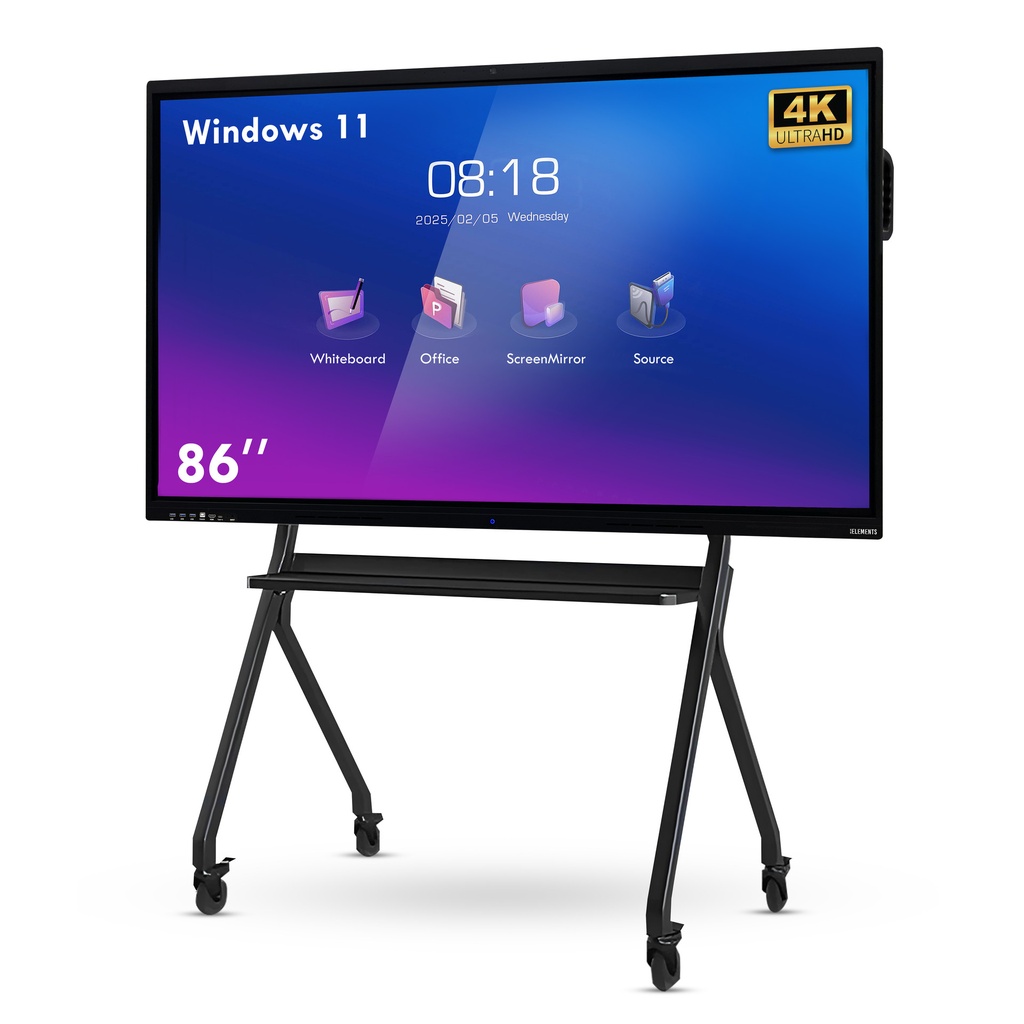

- Hot-Swap Computer Module: Intel® Core™ i5 8400T, 8GB RAM, 512GB SSD, Windows 11
- Camera: Integrated 48MP Ultra wide 120° camera with fixed focus and intelligent light compensation, delivering sharp, balanced visuals
- Microphone: 8-array mic, noise suppression, 12 m voice pickup
- Audio System: 2 × 15W Premium High-Fidelity Stereo Speakers
- Panel Lifespan: 50,000 Hours
- Glass: Full-bonded 7H explosion‑proof tempered glass, delivering anti-glare clarity, scratch resistance, and enhanced eye protection for safe, comfortable use.
- Advanced eye protection: Low blue light, Flicker‑free technology, Anti‑glare tempered glass, Adaptive brightness for safe and long viewing comfort

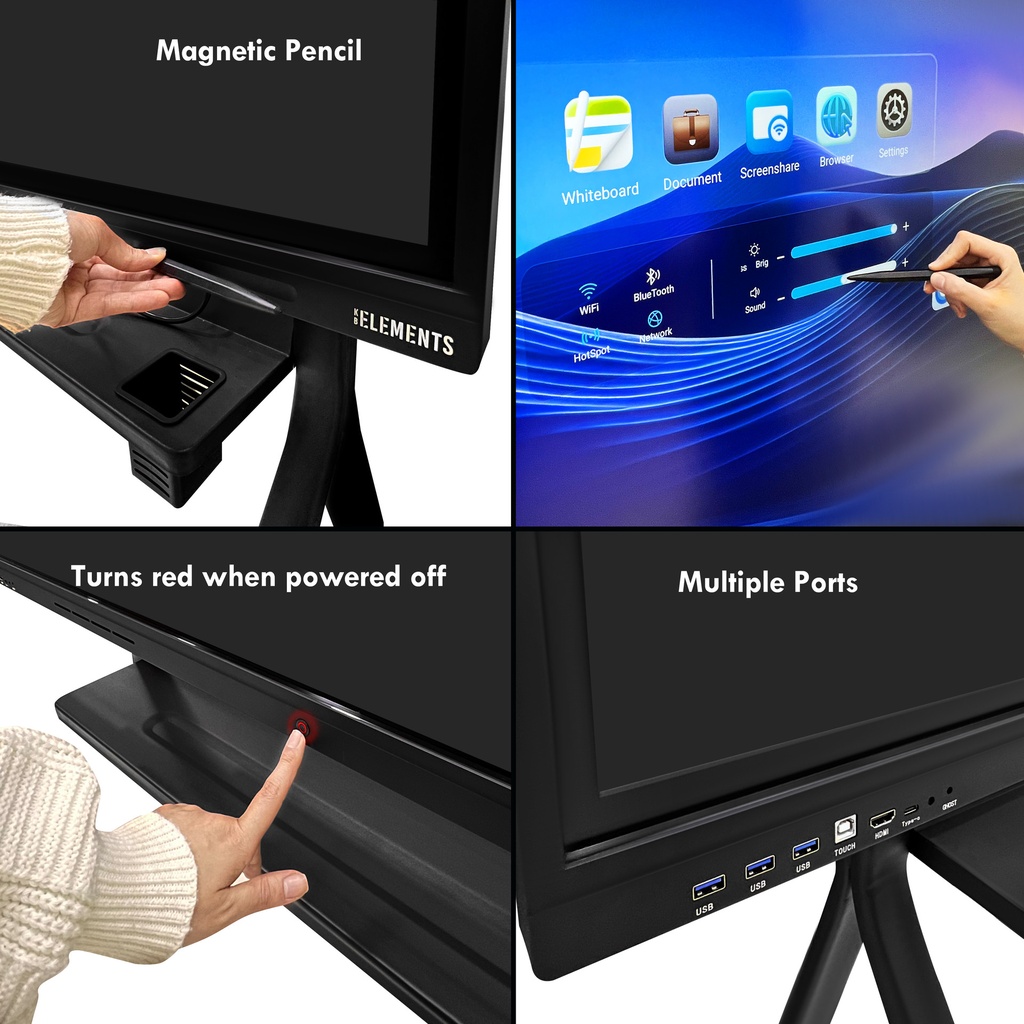

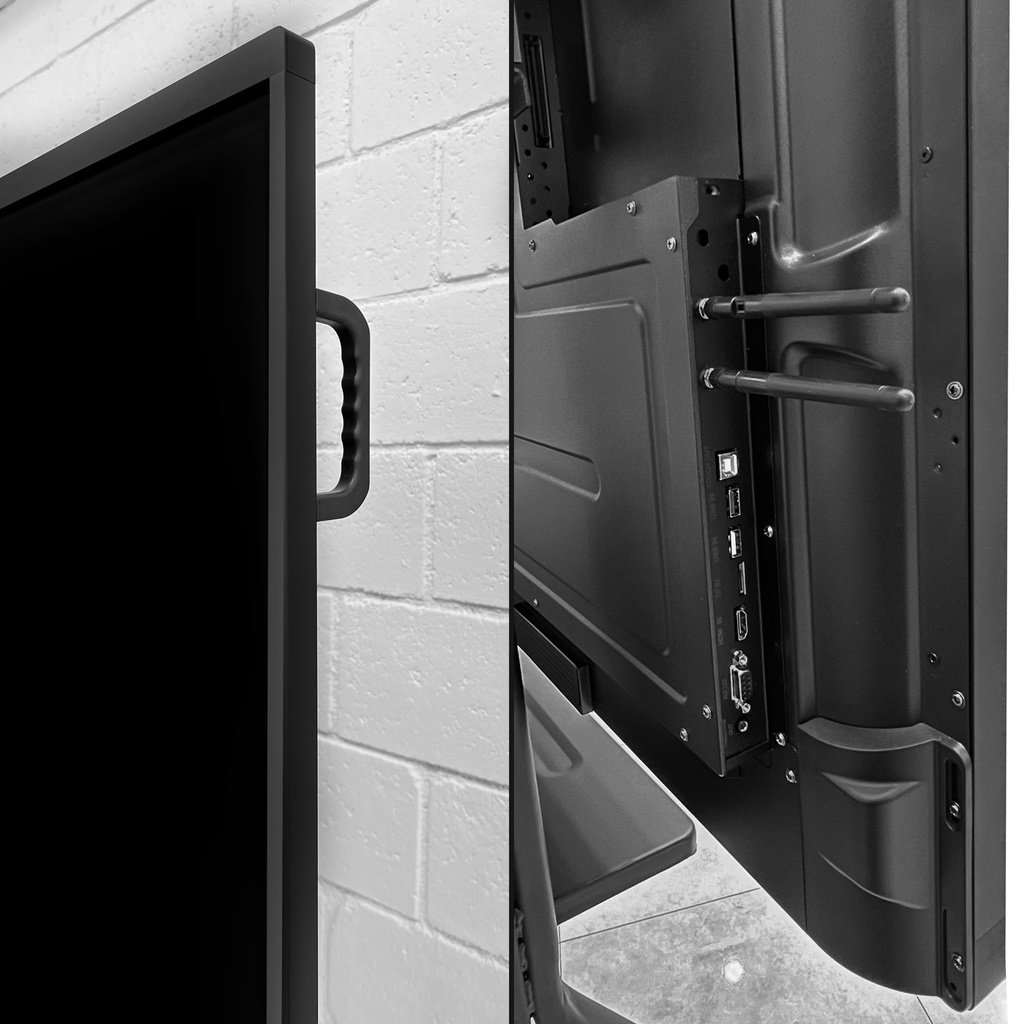

- I/O Ports PANEL: Type-c, HDMI, Touch, USB x 3 I/O Ports HOT SWAP: Antenna port X 2, Headphone x 1, HDMI _x001E_4K_x001D_60 HZ_x001C_ X 1, USB 3.0 X 1,USB 2.0 X 1, Touch Out x 1, RS232 VGA x 1
- Included Accessories: Wall-Mount Stand, Remote Control, 2 x Interactive Writing Pens, 1 x Telescopic Teaching Pointer, 1 x Cleaning Kit, HDMI Cable

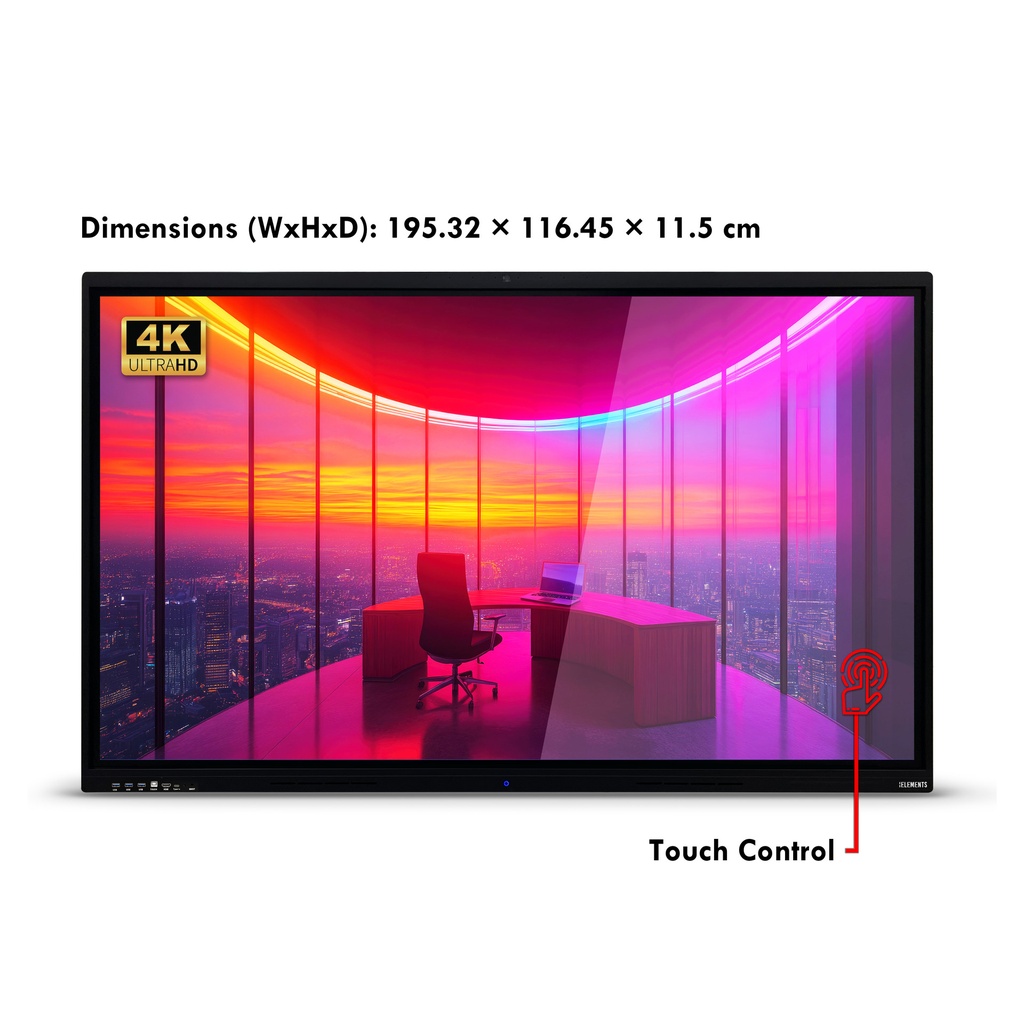

- Dimensions (WxHxD): 195 × 116.5 × 11.5 cm
- Weight: 75 kg (net), 83 kg (gross)
- Power Consumption: ≤430W (excluding OPS; supports OPS modules up to 100W), with external adapter rated at 19V ⎓ 4.74A / 90W, and ≤0.5W standby mode for energy efficiency
Product Identification
- Brand: KB Elements
- Model / SKU: ELT86P14DE
- Internal Reference: 5025
